Product Description

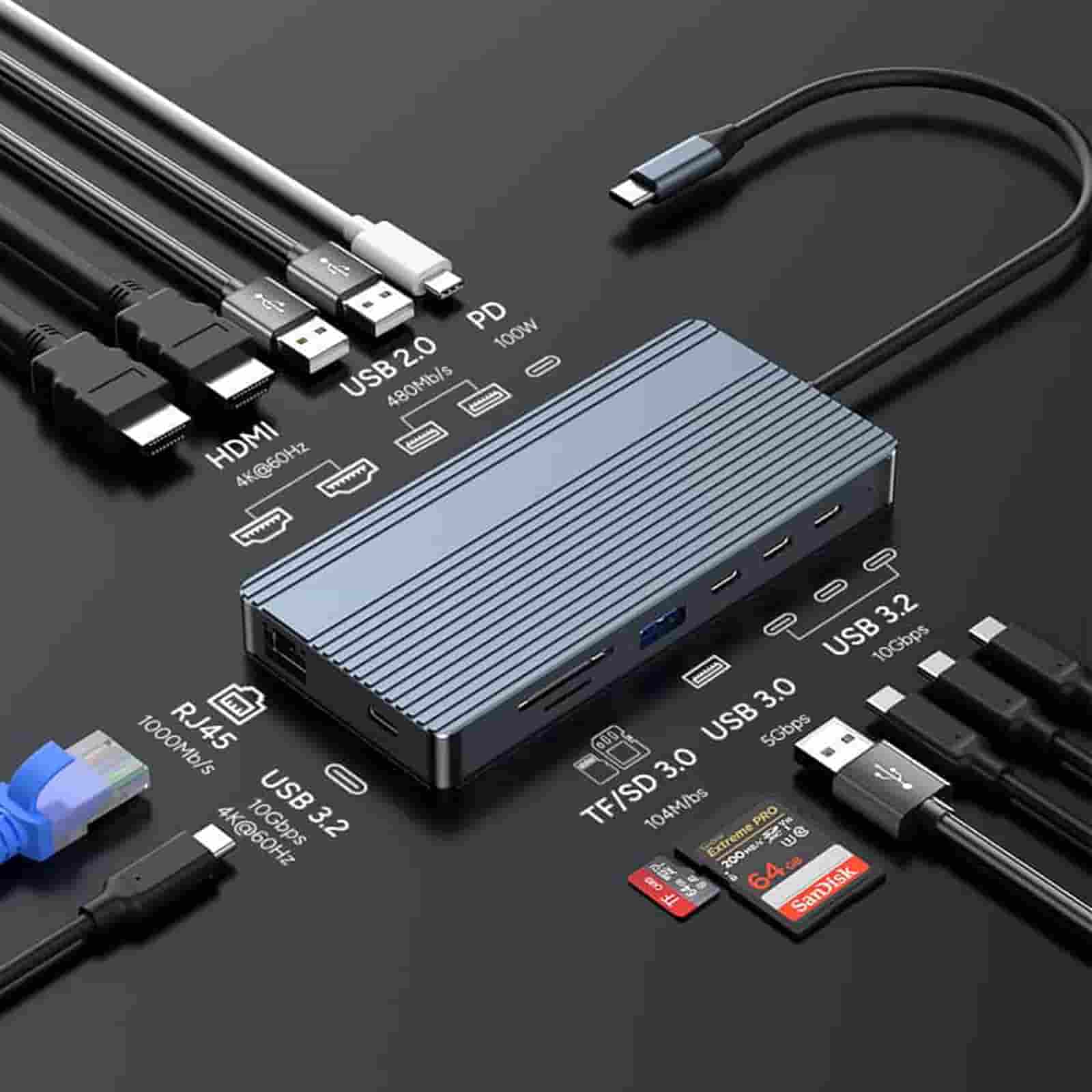

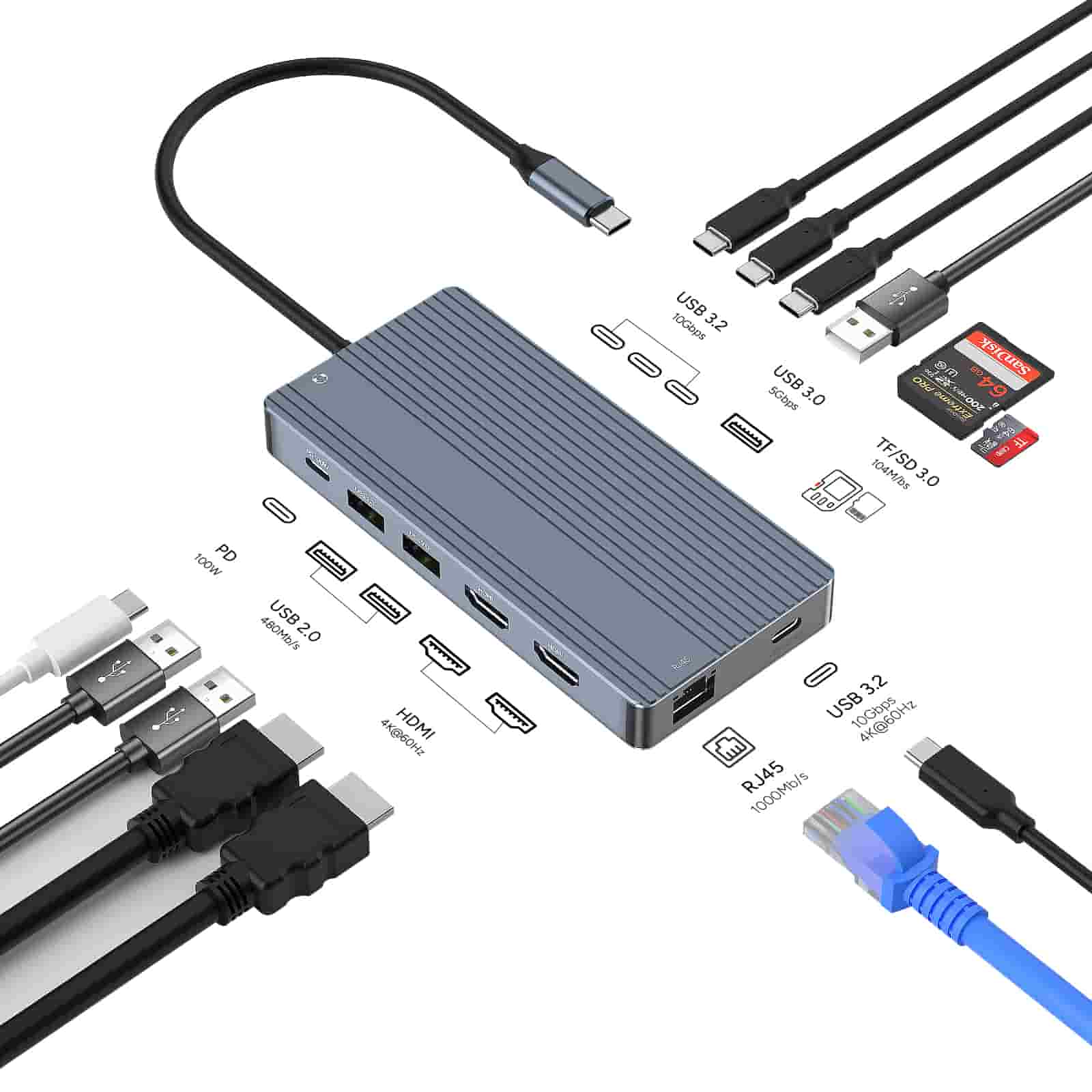

Ultimate Transfer Performance Powered by the GL3590 core control chip, featuring 4× USB 3.2 Gen2 ports (3× Type-C + 1× Type-A) with bandwidth up to 10Gbps — 100% faster than traditional USB 3.0, enabling large files to be transferred in seconds.

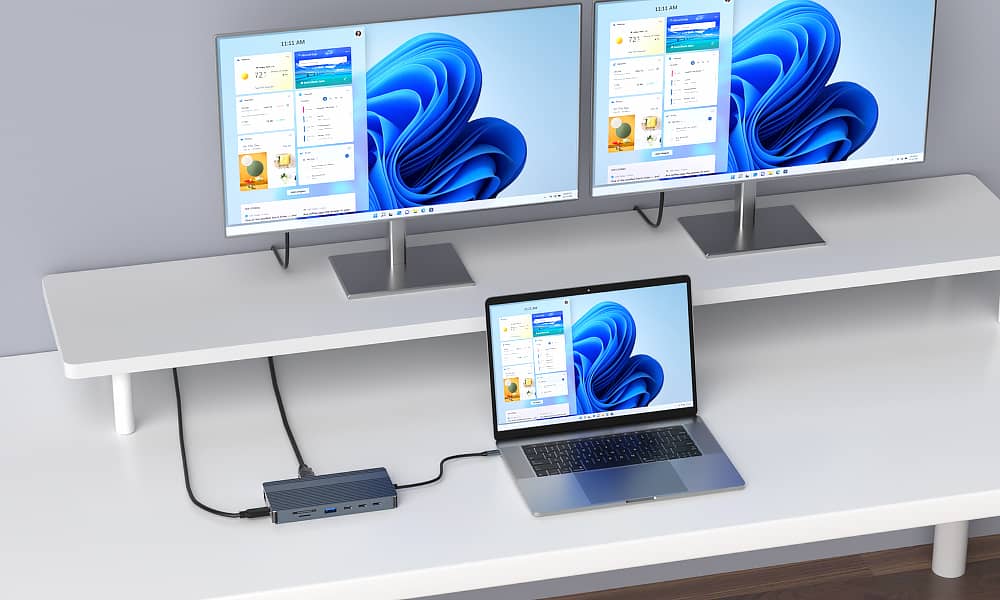

Professional Triple-Display Expansion Equipped with 2× HDMI 2.0 ports and 1× USB-C port with video output, supporting 4K@60Hz ultra-high-definition resolution. Windows devices support triple-screen independent display (MST mode) for significantly enhanced multitasking efficiency, while macOS supports Mirror / Extended Mode (SST).

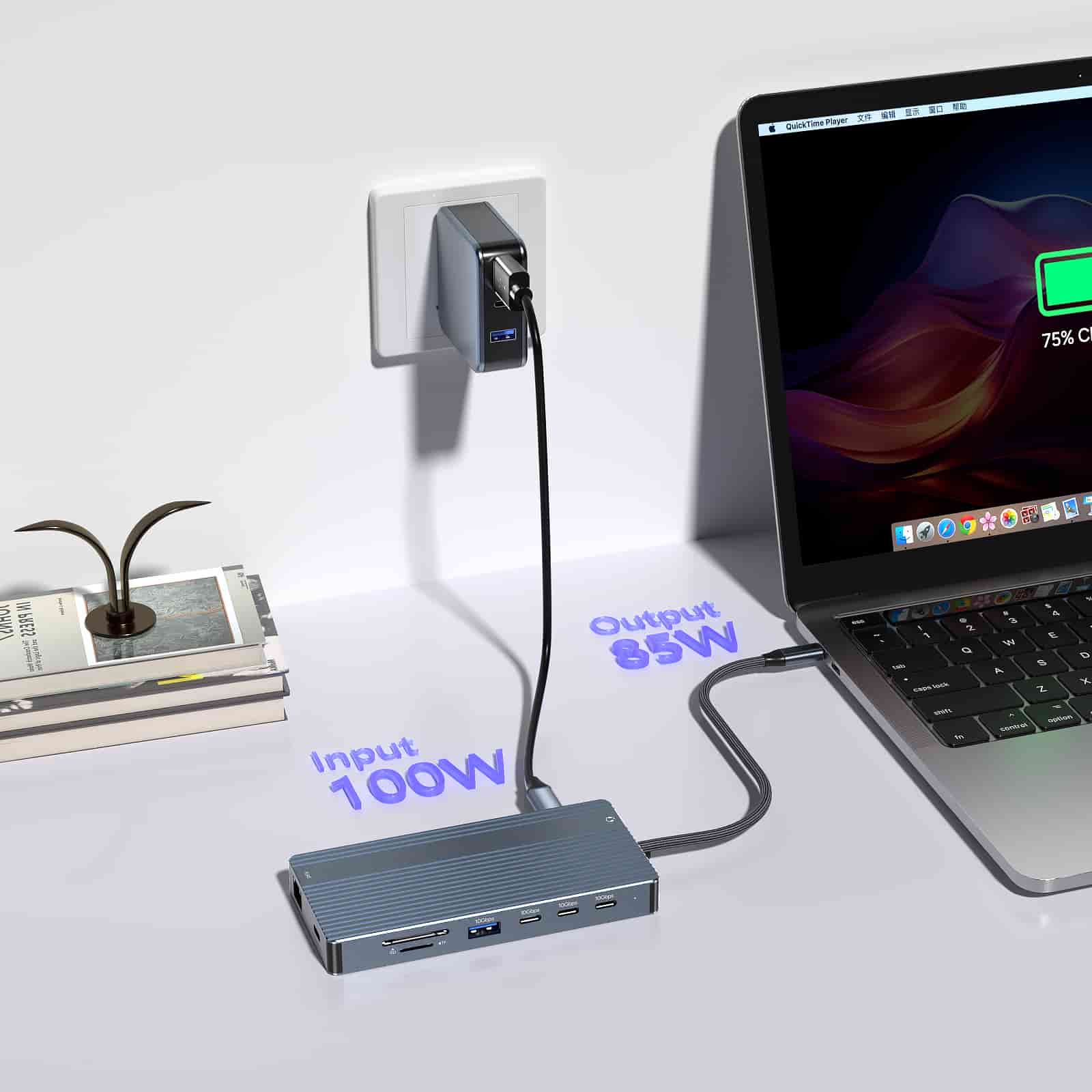

Efficient Power Distribution PD 3.0 protocol supports up to 100W input. The dock dynamically reserves 15W for internal components and delivers a stable 85W charging output to the upstream host device, ensuring uninterrupted power under full load.
All-Scenario Compatibility Integrated adaptive Gigabit Ethernet port (10/100/1000Mbps), dual SD/TF 3.0 card readers (104MB/s), and a 3.5mm audio/microphone combo jack — covering every need across office, cre-ative, and entertainment scenarios.

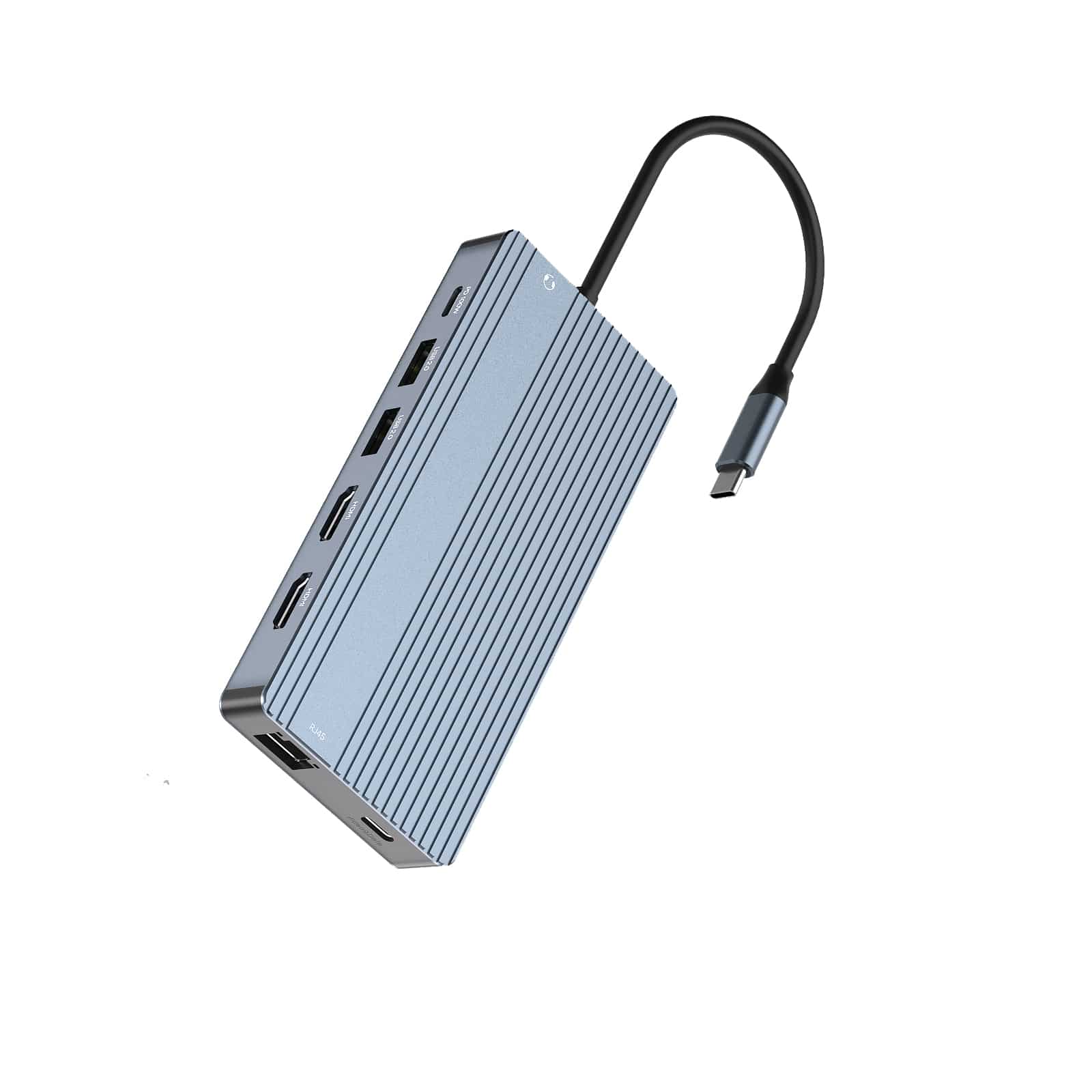

Industrial-Grade Thermal Architecture Crafted with a Phantom Grey aluminum alloy enclosure combined with a reinforced flame-retardant ABS inner shell. Superior thermal conductivity ensures signal stability during prolonged high-power operation.
|

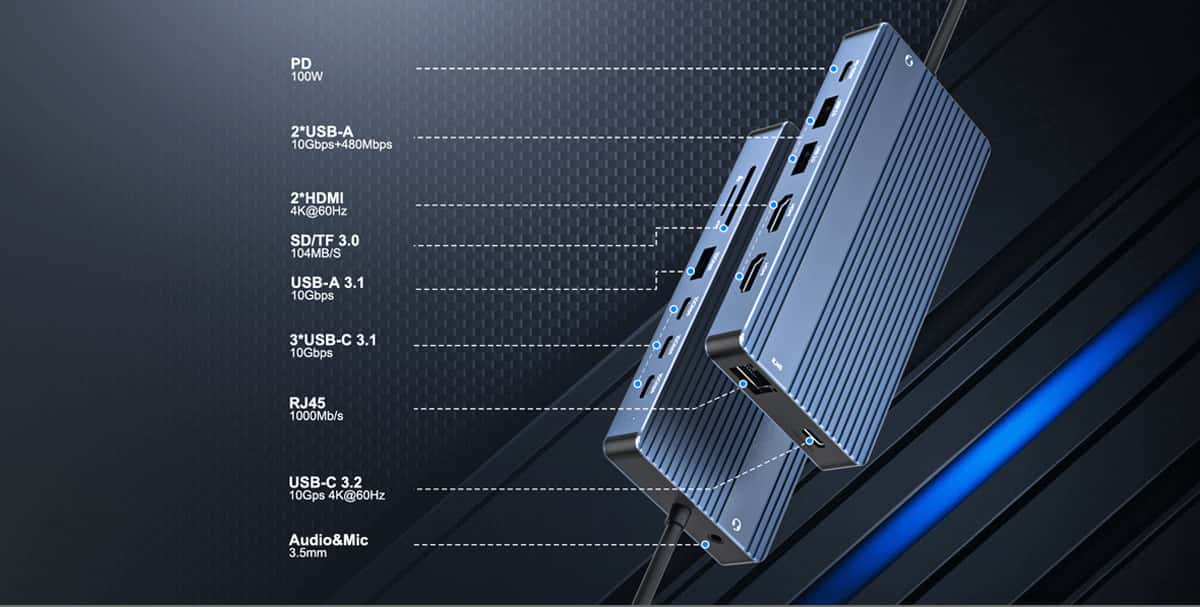

Category |
Item |
Parameters |
| Upstream Interface | USB-C Host | USB 3.2 Gen2 (10Gbps), PD 3.0 (Max 85W), DP Alt Mode 1.4 |
| Video Output | HDMI × 2 | Up to 4K@60Hz (4096×2160p), supports MST (Win) / SST (Mac) |
| USB-C Video | USB 3.2 Gen2 + Video Output (4K@60Hz), HDCP 1.4/2.2 | |
| Data Transfer | USB-C × 3 | USB 3.2 Gen2, 10Gbps |
| USB-A × 1 | USB 3.2 Gen2, 10Gbps | |
| USB-A × 2 | USB 2.0, 480Mbps (ideal for keyboard/mouse peripherals) | |
| Power Delivery | PD Input | Type-C port, PD 3.0 protocol, up to 100W input |
| Network & Connectivity | RJ45 | Gigabit Ethernet, 10/100/1000Mbps adaptive |
| Audio | 3.5mm Audio Out + Mic In (2-in-1), stereo supported | |
| Card Reader | SD/TF Slot | SD 3.0, 104MB/s, simultaneous dual-card display |
| Physical Specs | Material / Color | Aluminum Alloy + ABS / Phantom Grey + Black |
| Dimensions / Cable | 130 × 61 × 15.5mm / 25cm integrated cable |
FAQ
Q1: Why does my laptop only show 85W charging power when connected to a 100W charger?
A1: The docking station automatically reserves 15W to ensure stable operation of internal chips (Gigabit Ethernet, USB 3.2 controllers, etc.) and connected peripherals (such as external hard drives). Therefore, the maximum power delivered upstream to the host device is 85W.
Q2: Does macOS support displaying different content on three monitors simultaneously?
A2: Due to macOS system limitations, only SST (Single-Stream Transport) is supported in extended mode — meaning all external displays can only show the same extended screen. Triple-screen independent display (MST) is only available on Windows systems.
Q3: Is it normal for the device to heat up when multiple peripherals are connected?
A3: Yes, this is normal. The aluminum alloy enclosure is designed to dissipate heat through the chassis itself. When 10Gbps transfer, 4K video output, and PD charging are used simultaneously, the surface temperature will rise — this remains within safe operating range, and built-in overheat protection is activated when necessary.
Q4: Why can't my HDMI output reach 4K@60Hz?
A4: Achieving 4K@60Hz depends on whether your host device's USB-C port supports DP 1.4 protocol. If the host only supports DP 1.2, video output will be limited to 4K@30Hz. Please verify your computer's specifications.
Q5: Can the SD card and TF card be read simultaneously?
A5: Yes. This product supports dual-drive simultaneous display — no need to swap cards repeatedly, allowing convenient data transfer between different storage media.
