When building professional live streaming or broadcast-grade recording systems, the choice of video capture device is essentially a trade-off between bus bandwidth and data throughput. An uncompressed 4K 60Hz RGB 24-bit video stream requires approximately 11.94 Gbps of data. This physical constant directly reveals the market reality: most consumer-grade interfaces cannot handle true, lossless "original quality." Understanding this underlying logic is the prerequisite for selecting between a pcie video capture card and a USB solution.
Bus Bandwidth: The Absolute Physical Barrier
Data transmission stability depends on the capacity of the "conduit." The theoretical bandwidth limit of USB 3.0 (USB 3.1 Gen 1) is 5 Gbps. After deducting protocol overhead, the actual effective payload is typically between 3.2 Gbps and 4 Gbps. Faced with high-framerate data streams, a usb 3.0 video capture card must compress the signal (e.g., compressing RGB to YUV 4:2:0) or employ MJPEG intra-frame compression before transmission. While this compromise reduces bandwidth requirements, it introduces visible compression artifacts in high-dynamic scenes and adds encoding/decoding latency ranging from 50ms to 150ms.

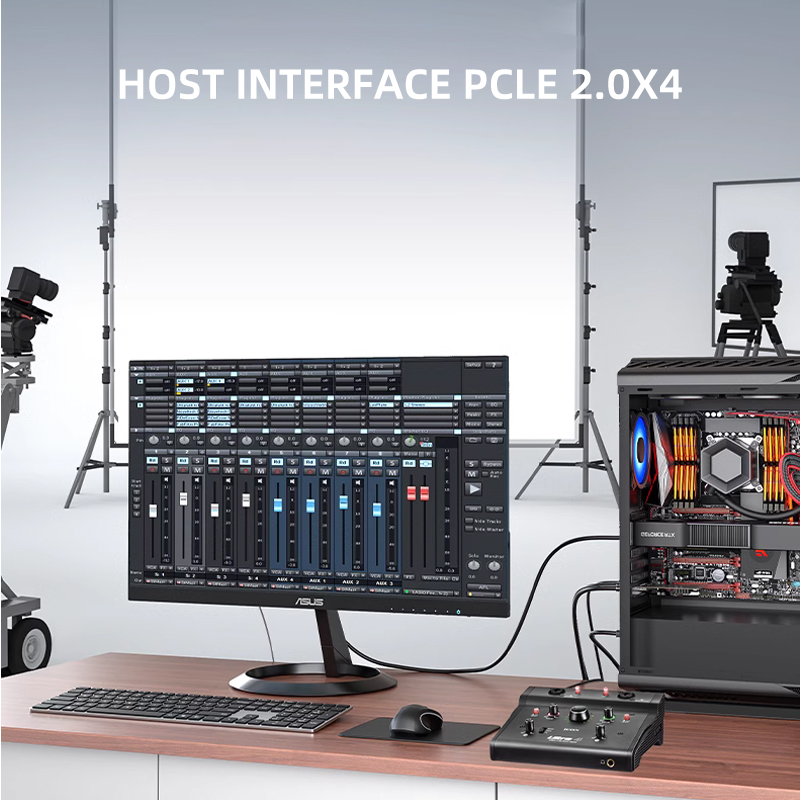

In contrast, the PCIe interface leverages the motherboard's high-speed lanes. Even the older PCIe Gen 2.0 x4 interface offers a theoretical bandwidth of 20 Gbps; modern pcie video capture card models utilizing PCIe Gen 3.0 x1 or x4 specifications easily break the 10 Gbps transmission bottleneck. Crucially, PCIe devices support DMA (Direct Memory Access) technology, allowing the capture card to write video data directly to system memory, bypassing the CPU. This not only suppresses capture latency to a "quasi-real-time" level of 20ms–50ms but also significantly reduces the CPU's IRQ (Interrupt Request) load, preventing system stutter during high-load streaming.
Core Metrics for 4K Capture: Hidden Parameters Beyond Resolution
There is a massive performance watershed among devices labeled as a 4k video capture card. "Supporting 4K Input" and "Supporting 4K Capture" are two distinct concepts, while "Supporting 4K 60Hz HDR Lossless Recording" represents a different dimension of industrial standards.
Qualified 4K capture equipment must feature onboard EDID emulators and FPGA scaling engines. When low-end devices forcibly capture 4K signals, they often downgrade chroma subsampling to NV12 (4:2:0), resulting in blurred red text or color bleeding. Professional-grade equipment should support full color gamut sampling in YUV 4:4:4 or even RGB 24-bit (at specific frame rates). Furthermore, HDR Tone Mapping is a mandatory hardware function to consider: it is responsible for real-time hardware mapping of HDR (BT.2020/PQ) input signals to SDR (Rec.709), ensuring that images do not appear washed out or overexposed on streaming platforms that do not support HDR.
Scenario Decision: Balancing Integration and Portability
System Integration & Dual-PC Streaming: The PCIe Domain
For game streamers or studios pursuing ultimate image quality, a pcie video capture card is the only logical choice. Its advantages include:
Thermal Stability: Located within the chassis airflow, PCIe cards rely on large heatsinks and case fans for dissipation. Long-duration 4K recording will not suffer from frame drops due to thermal throttling.
Multi-Channel Concurrency: Because PCIe lanes are independent, high-end motherboards can accommodate multiple capture cards simultaneously (e.g., quad SDI/HDMI) without bandwidth interference, making them suitable for multi-camera production.
Connection Stability: There is no risk of accidental disconnection due to vibration, unlike USB interfaces.
Mobile Duty & Laptop Streaming: The USB 3.0 Niche
The core value of a usb 3.0 video capture card lies in the driver-free nature of the UVC (USB Video Class) protocol. In scenarios involving outdoor live streaming, DSLR monitoring, or using a laptop as the streaming station, it is irreplaceable.
Compatibility: Plug-and-play across Windows, macOS, and Linux.
Flexibility: Although bandwidth bottlenecks exist, high-end USB capture cards balance image quality and portability by using built-in hardware encoders (such as H.264 pre-compression) to circumvent the bandwidth pressure of RAW data.
Technical Comparison
The table below contrasts key performance indicators of mainstream architectures based on real-world testing data:
| Key Metric | PCIe Video Capture Card (Gen 2x4 / Gen 3x1) | USB 3.0 Video Capture Card (UVC) |
| Physical Bandwidth | 10 Gbps - 20 Gbps | 5 Gbps (Effective approx. 3.2 Gbps) |
| Transmission Latency | Ultra-low (20ms - 40ms) | Medium (50ms - 150ms, depends on compression) |
| Color Space | Supports RGB 4:4:4, YUY2 4:2:2 | Usually limited to NV12 4:2:0, MJPEG |
| CPU Usage | Low (Supports DMA) | Medium/High (Relies on CPU for partial unpacking) |
| Multi-Card Support | Excellent (Limited only by PCIe slots) | Poor (Easily limited by USB controller total bandwidth) |
| TDP / Thermal | Rely on chassis active cooling; extremely stable | Passive cooling; prone to thermal throttling under long 4K loads |
Buying Advice
If you are building a fixed live streaming workstation and the motherboard has spare PCIe x4 slots, you must choose a pcie video capture card. It is the physical optimum for solving screen tearing and reducing input latency. Con-versely, if your workflow involves frequent location changes or relies on a laptop, you should select a high-end usb 3.0 video capture card with an active cooling fan, and verify whether it supports YUY2 uncompressed format transmission to maximize the preservation of details expected from a 4k video capture card.
