A 4 port USB hub is a hardware interface expansion device that connects to a single USB upstream port on a host system and exposes four downstream USB ports for peripheral attachment. Electrically and logically, it does not duplicate the host interface. Instead, it enumerates as a hub device and presents four individually addressable downstream endpoints to the host controller. The operating system manages each endpoint independently through standard USB hub class drivers.
Technical Architecture
Internally, a USB hub is built around a hub controller IC that handles upstream communication, downstream port switching, and device enumeration. The upstream link connects the hub to the host, while each downstream port is connected through the controller’s internal transaction translator.
Bandwidth is shared, not multiplied. For example, a USB 3.0 upstream link provides a theoretical maximum of 5 Gbps. All active downstream devices attached to the 4 port USB hub must share this bandwidth, with allocation dynamically scheduled by the host controller. Concurrent high-throughput devices can therefore reduce effective transfer rates per port. The hub controller IC also manages port status signaling, overcurrent detection, and reset conditions.
Power Distribution (Electrical Characteristics)
Power behavior is a defining selection criterion. Two architectures are used:
1. Bus-powered (passive) hubs draw all power from the upstream USB connection. Under the USB 3.0 specification, the host typically supplies up to 900 mA at 5 V. This current is divided across the four downstream ports, minus losses in the controller IC and protection circuitry. As a result, each port may deliver substantially less than 225 mA under load. Low-power devices such as keyboards, mice, or USB receivers function reliably in this configuration.
2. Self-powered (active) hubs incorporate an external power supply. The upstream connection carries data only, while downstream ports can deliver higher and more stable current levels. This is required for bus-powered external hard drives, SSD enclosures, and other devices with high inrush current or sustained amperage demand. Without adequate current, such devices may fail to enumerate, disconnect intermittently, or operate below specification.
Amperage limits are enforced by the hub controller and downstream power switches to maintain compliance and prevent damage.
Protocol Versions and Use Cases
Functional capability depends on the USB protocol version implemented by the hub controller:
1. USB 2.0 hubs (480 Mbps) are suitable for human interface devices, printers, scanners, and serial adapters. Latency-sensitive but low-bandwidth peripherals are generally unaffected by shared throughput at this speed.
2. USB 3.0 / USB 3.2 Gen 1 hubs (5 Gbps) support high-speed storage devices, capture hardware, and network adapters, subject to shared bandwidth constraints.

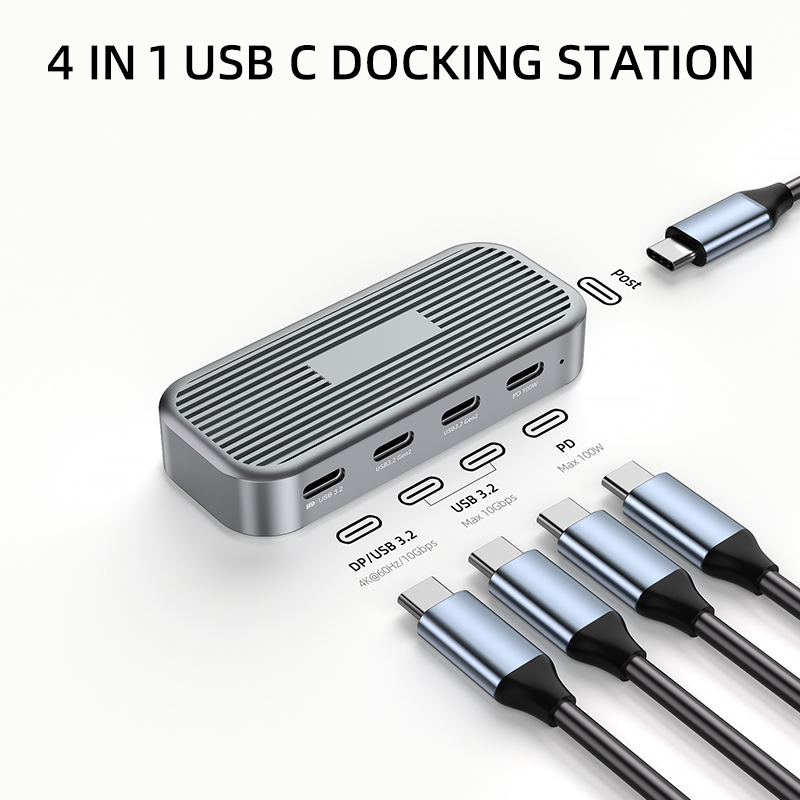

3. USB 3.2 Gen 2 hubs (10 Gbps) Featuring an all-USB-C layout, it doubles USB 3.0 bandwidth to optimize NVMe SSD performance. Integrated 100W PD pass-through ensures stable power for the host and peripherals during high-load transfers.
Protocol backward compatibility is inherent. A USB hub negotiates link speed with the host and each downstream device independently.
Form Factor, Materials, and Thermal Behavior
Enclosure material influences thermal performance and mechanical durability. Aluminum housings provide improved heat dissipation from the controller IC and voltage regulators during sustained data transfer or high-current operation. Plastic enclosures reduce cost and weight but retain heat more readily.
Cable length between the hub and host affects signal integrity, particularly at SuperSpeed data rates. Short, well-shielded upstream cables reduce insertion loss and electromagnetic interference. Excessive cable length can degrade link stability, forcing fallback to lower speeds.
Selection Considerations
A 4 port USB hub should be selected based on power architecture, supported USB revision, and intended device mix rather than port count alone. Storage-heavy deployments favor self-powered designs with USB 3.x controllers, while peripheral aggregation favors compact bus-powered units. The term USB hub covers a wide range of internal implementations, making controller IC choice and power design more significant than external appearance.
Compatibility and Forward-Looking Notes
Most hubs rely on native OS drivers and function without additional software across Windows, macOS, and Linux platforms. USB4 and Thunderbolt systems maintain backward compatibility through protocol tunneling, but legacy hubs remain constrained by their upstream USB link speed and electrical limits.
